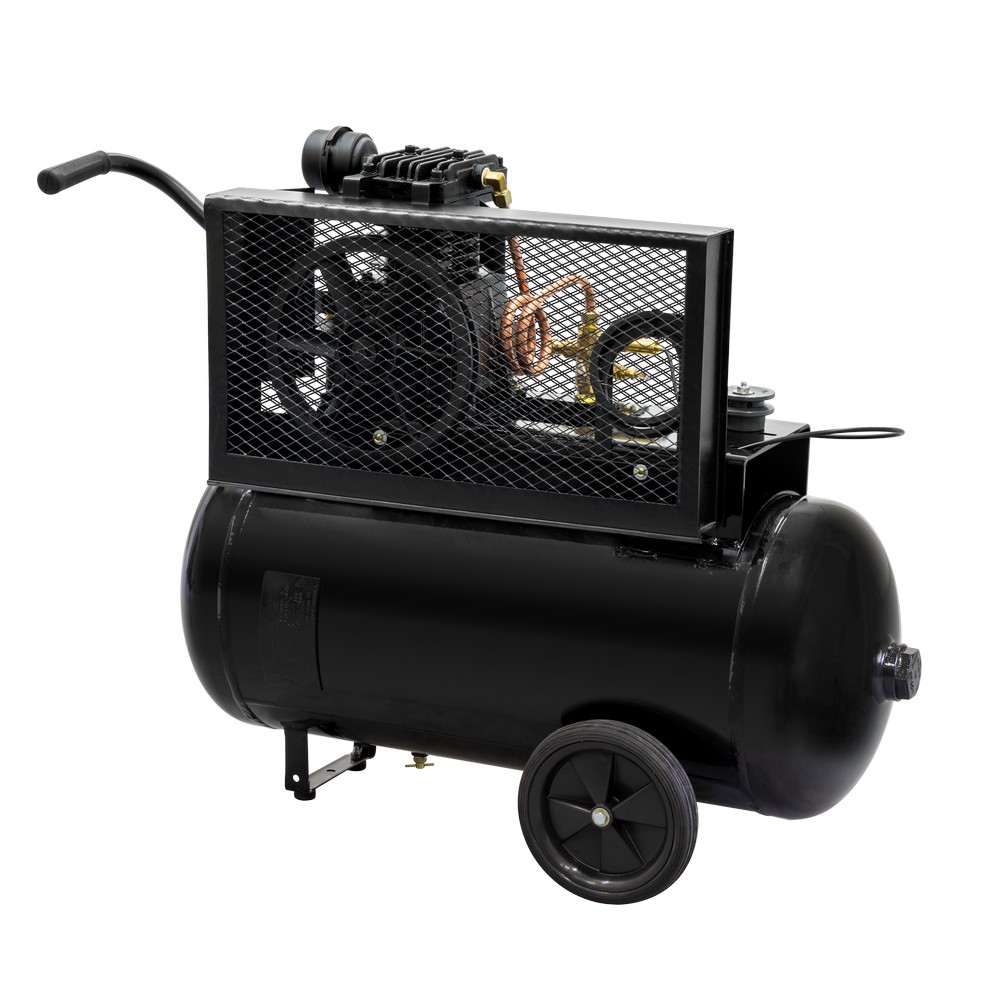

Max CSL 10/80 Air Compressor - 10 SCFM 80 liters 4 hp
Schulz
Code: 931.8234-0
Phase - Voltage
Product codes
Technical File
Technical File
Technical File
Technical File
Phase - Voltage
Without motor - Gasoline
Operation Regime
Continuous
Engine Type
Without motor - Gasoline
Power
4 hp - 4 kW
Air Displacement
10 SCFM - 283 L/min
Maximum Operating Pressure
120 psi - 8.3 bar
Minimum Operating Pressure
80 psi - 5.5 bar
Product's Rotation
860 rpm
Number of Stages
1
Number of Pistons
2-L
Air Tank Volume
20.0 gallons
Lubricant Oil Volume
0.13 gallons
Lubricated or Oil Less
Lubricated
Length of Packaged Product
1,020.00 mm
Width of Packaged Product
560.00 mm
Height of Packaged Product
1,040.00 mm
Gross weight
93.50 kg
Net Weight
75.10 kg
